SPECIFICATIONS

After-sales Service Provided: Video Technical Support,Online support

Voltage: 110V/220V

Weight (KG): 3.1

application: Food,Beverage,Commodity,Chemical,Cosmetic

automatic grade: Semi-Automatic

brand name: ZONESUN

core components: Pump,Motor,PLC

dimension(l*w*h): 636*166*179mm

driven type: Electric

filling accuracy: ±1%

filling material: Milk,Juice,Liquid

filling nozzle: 1

key selling points: Easy To Operate,Low Noise Level,High-Accuracy,Long Service Life,High Safety Level,High Productivity

packaging material: Plastic,Metal,Glass

packaging type: Bottles,Cans,VIAL,Jar

place of origin: Guangdong

video outgoing-inspection: Provided

warranty: 1 Year

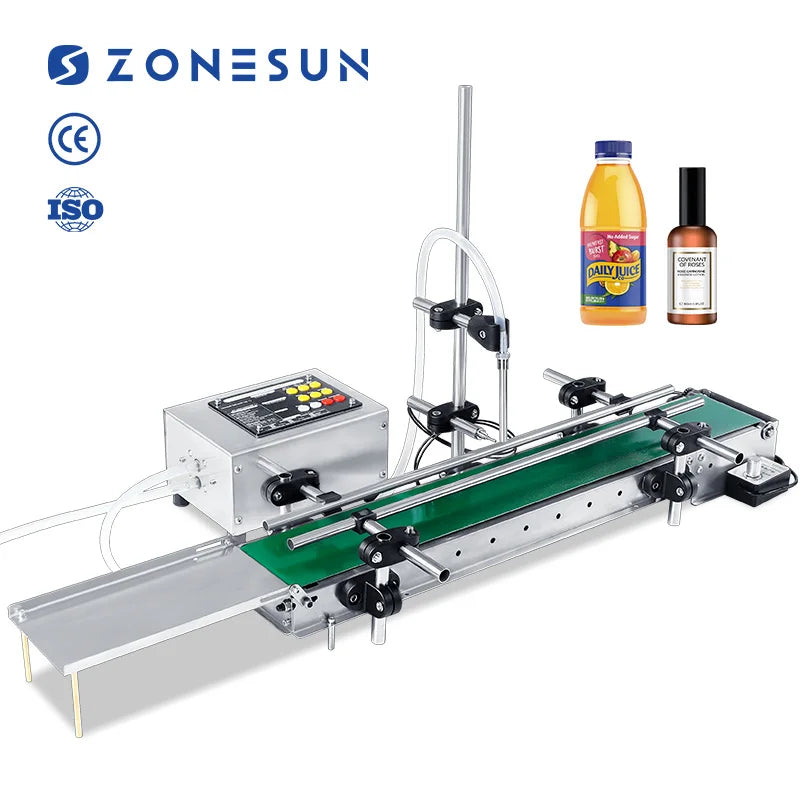

Products Description

Description：

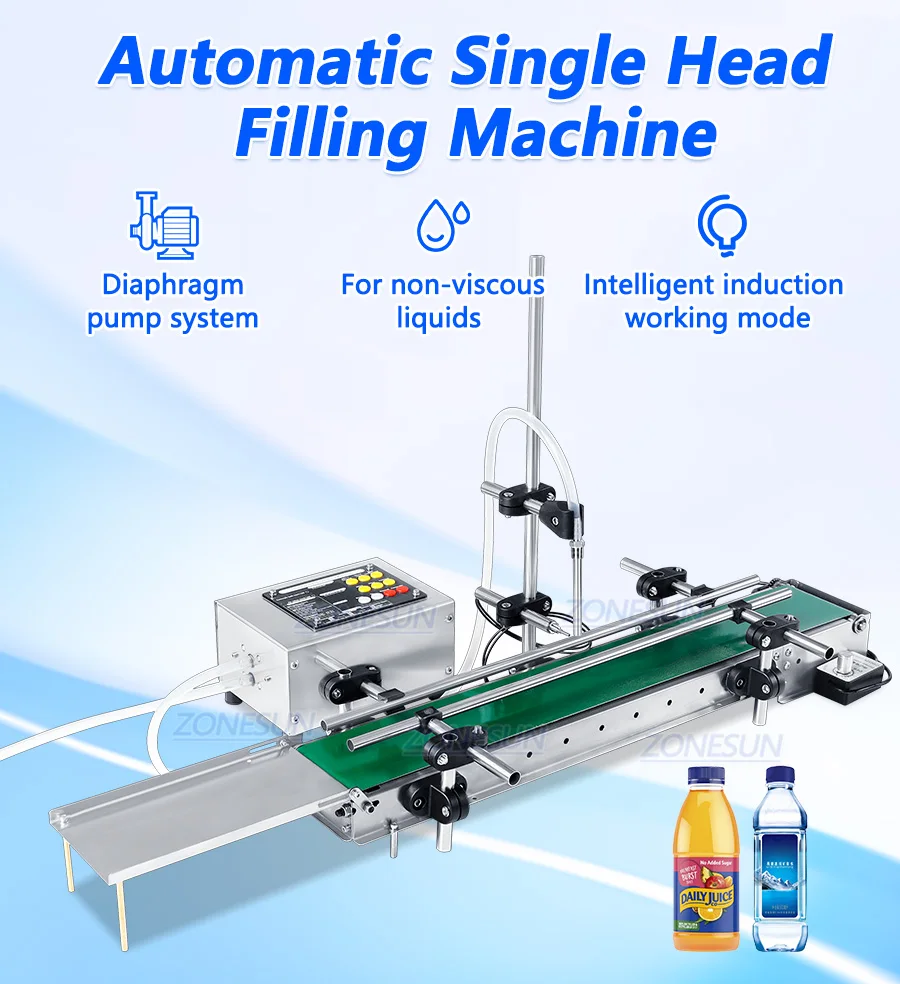

The biggest advantage of this machine is the Intelligent induction working mode.This one can detect bottles and filling liquid automatically.It can help you reduce working error and filling liquid accurately.We also offer the heat resisting type for filling high temperature liquid.It is with small design but the function is great.

Application:

It can be used to fill water,beverage,sauce.juice,soybean milk,toner etc.The flling liquid must be without particle and not viscous.It is not suitable for machine oil,paste,honey etc.It is an deal choice for the small production.

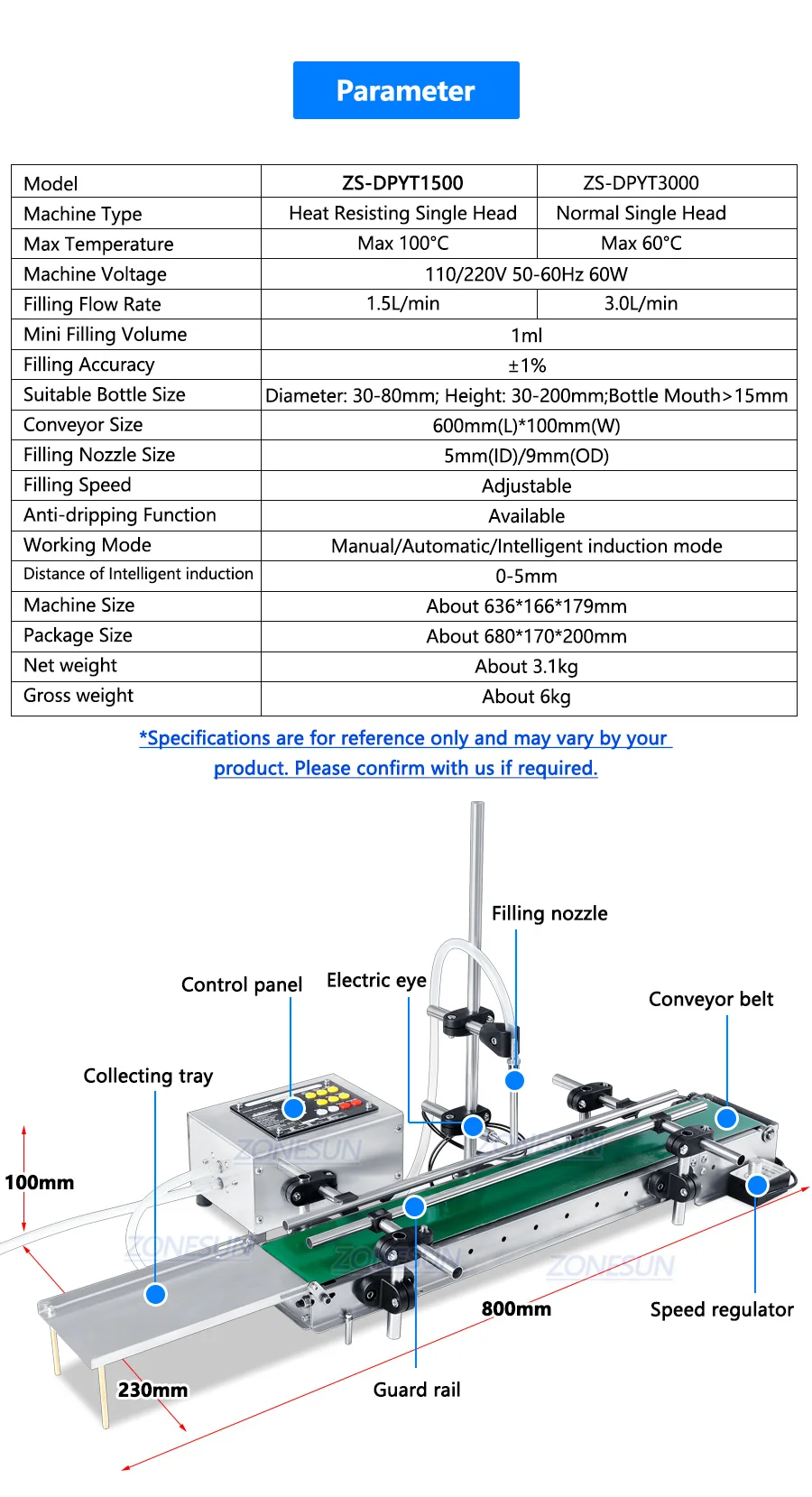

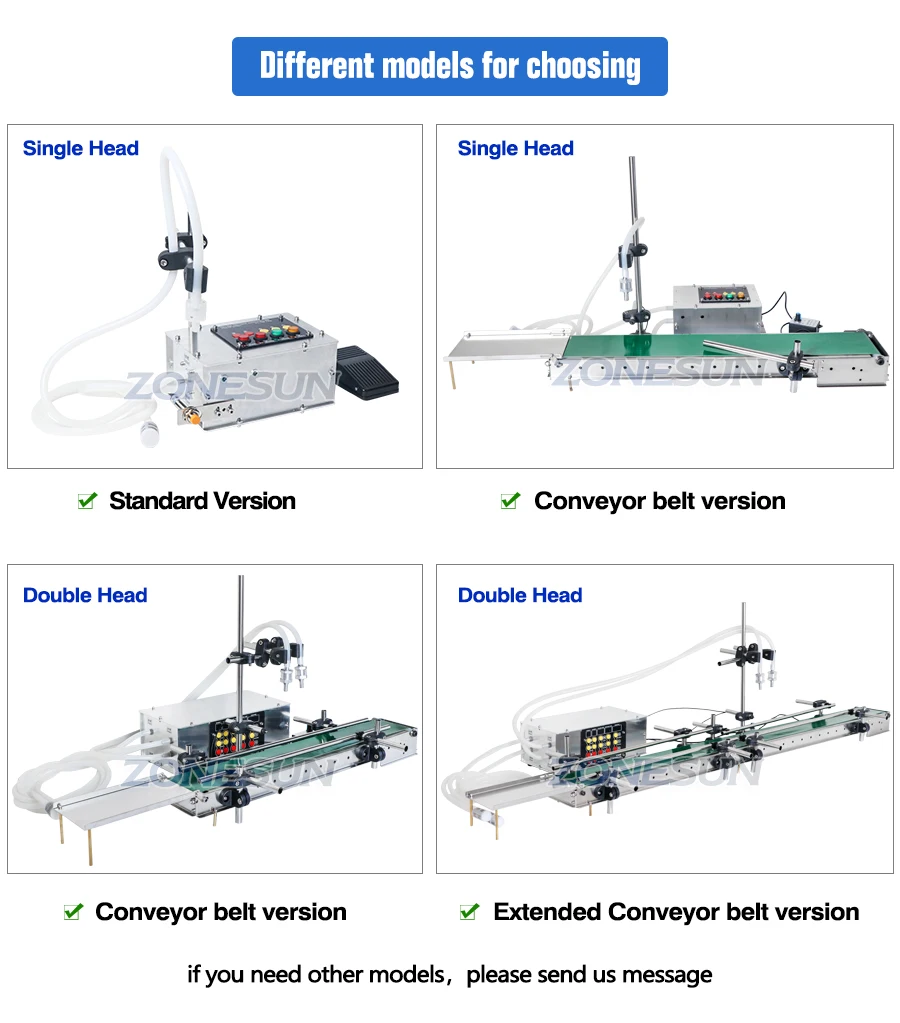

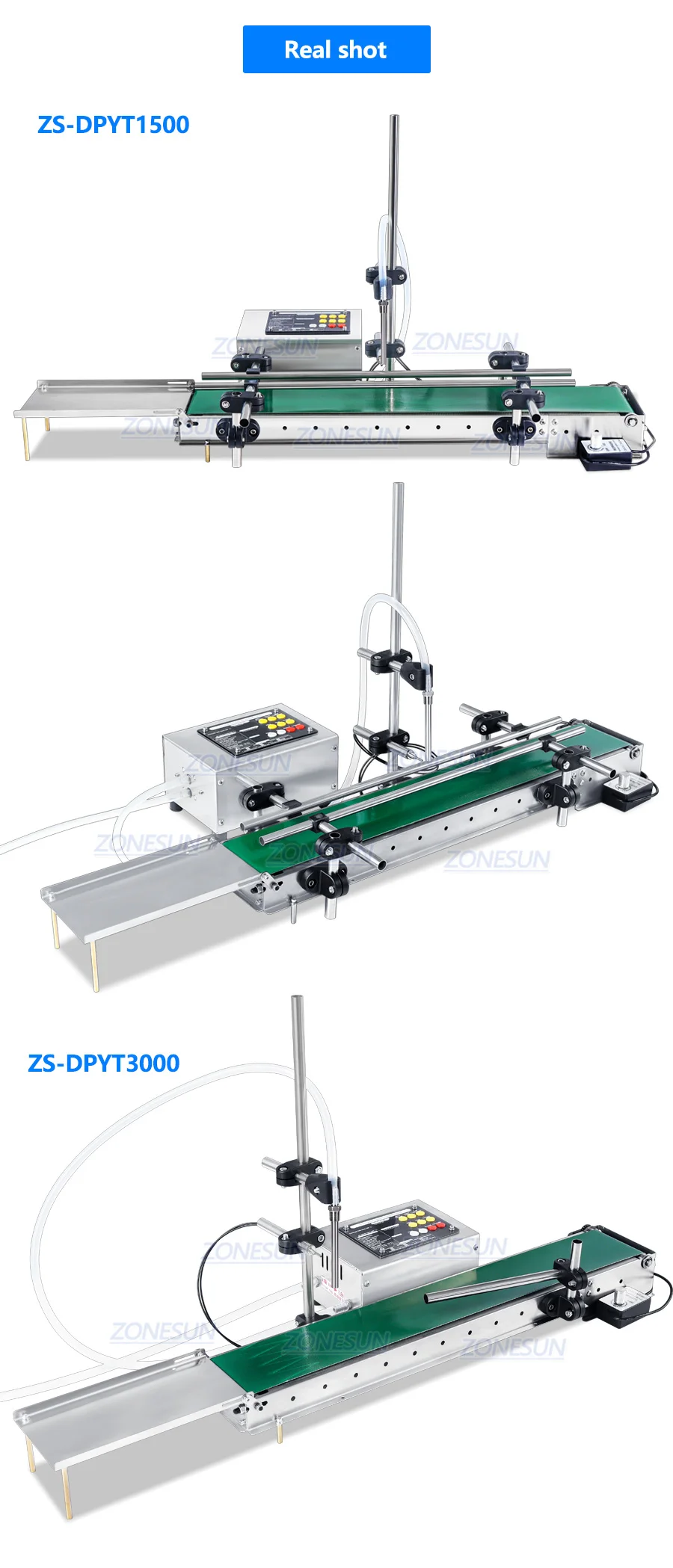

Model	ZS-DPYT1500	ZS-DPYT3000
Machine Type	Heat Resisting Single Head	Normal Single Head
Max Temperature	Max 100°C	Max 60°C
Machine Voltage	110/220V 50-60Hz 60W
Filling Flow Rate	1.5L/min	3.0L/min
Filling Volume	5-500ml	10-500ml
		(based on filling material )
Filling Accuracy	±1%
Suitable Bottle Size	Diameter:30-80mm Height: 30-200mm Bottle Mouth>15mm

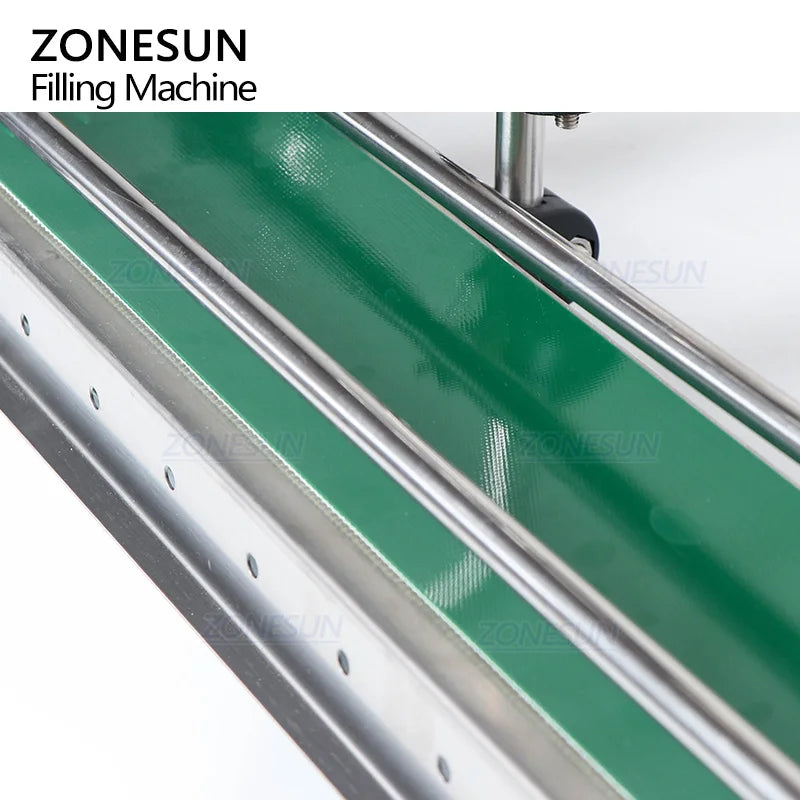

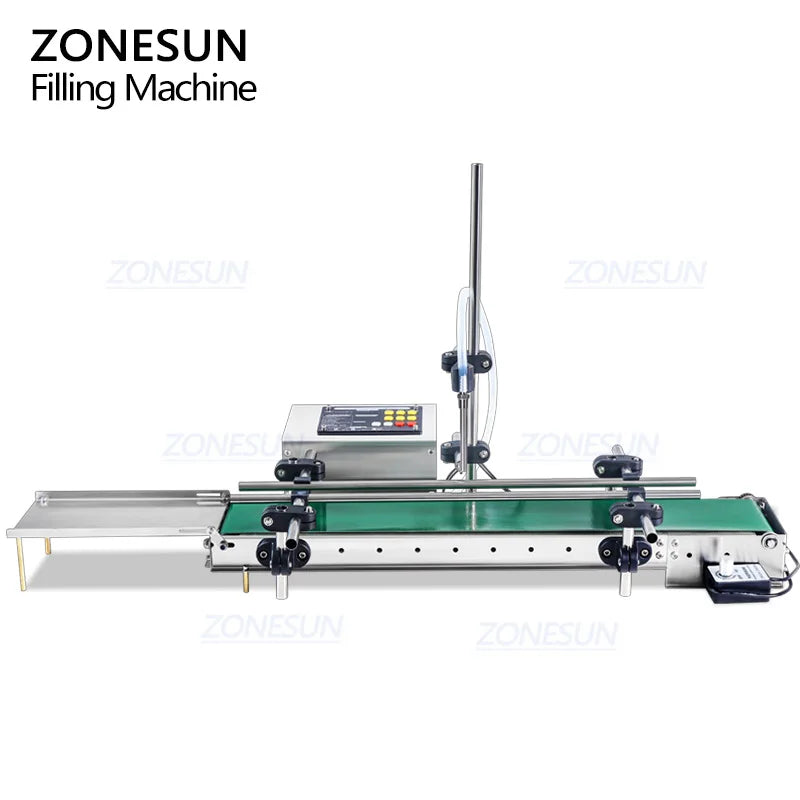

Conveyor Size	600mm(L)*100mm(W)
Conveyor Load Capacity	6kg

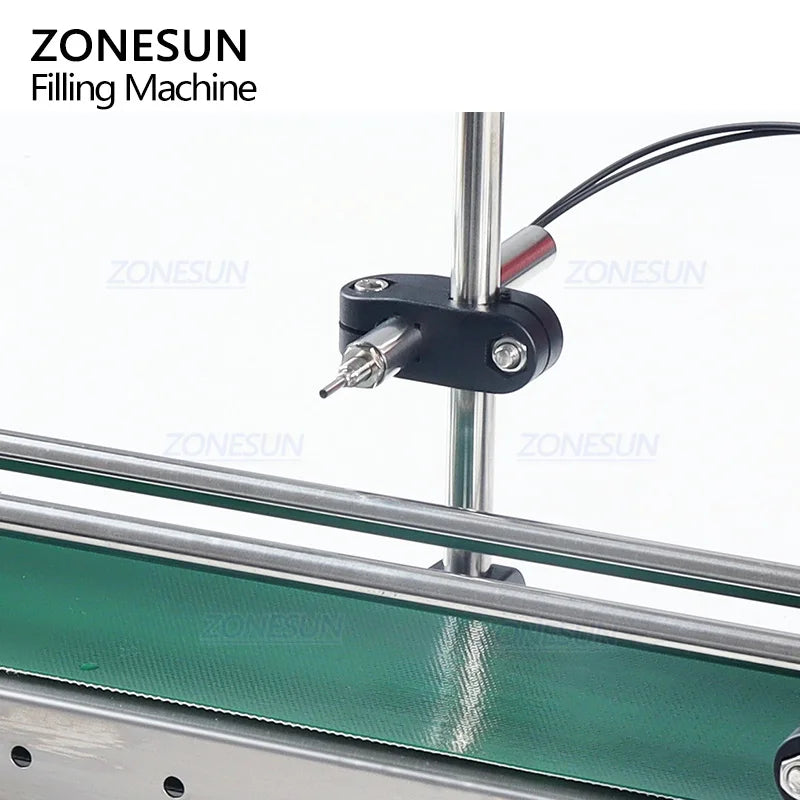

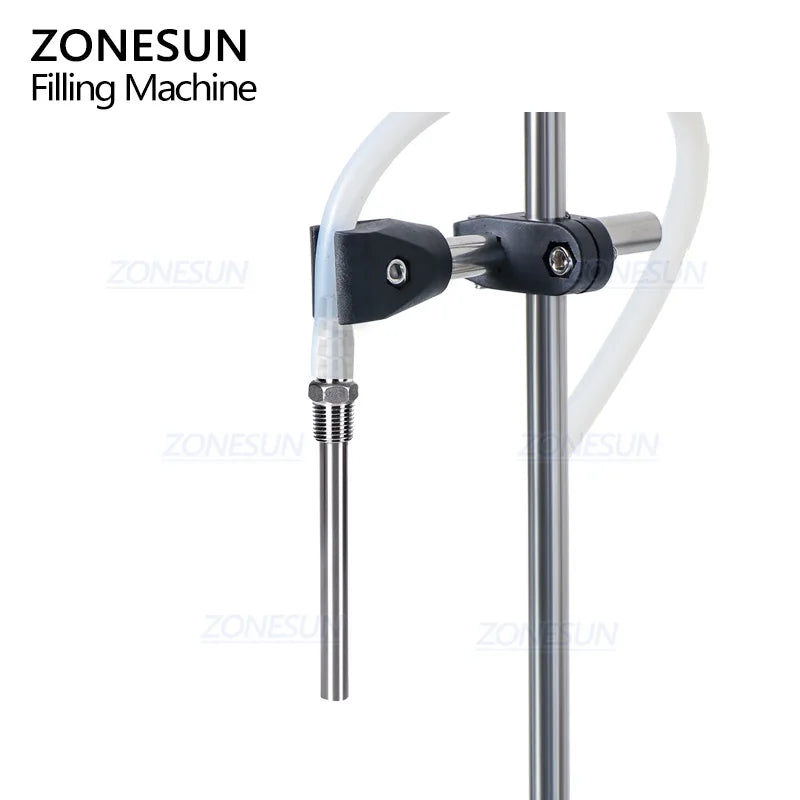

Filling Nozzle Size	3.5mm+6mm (Standard Size) 9mm (Optional Size)
Filling Speed	Adjustable
Anti-dripping Function	Available

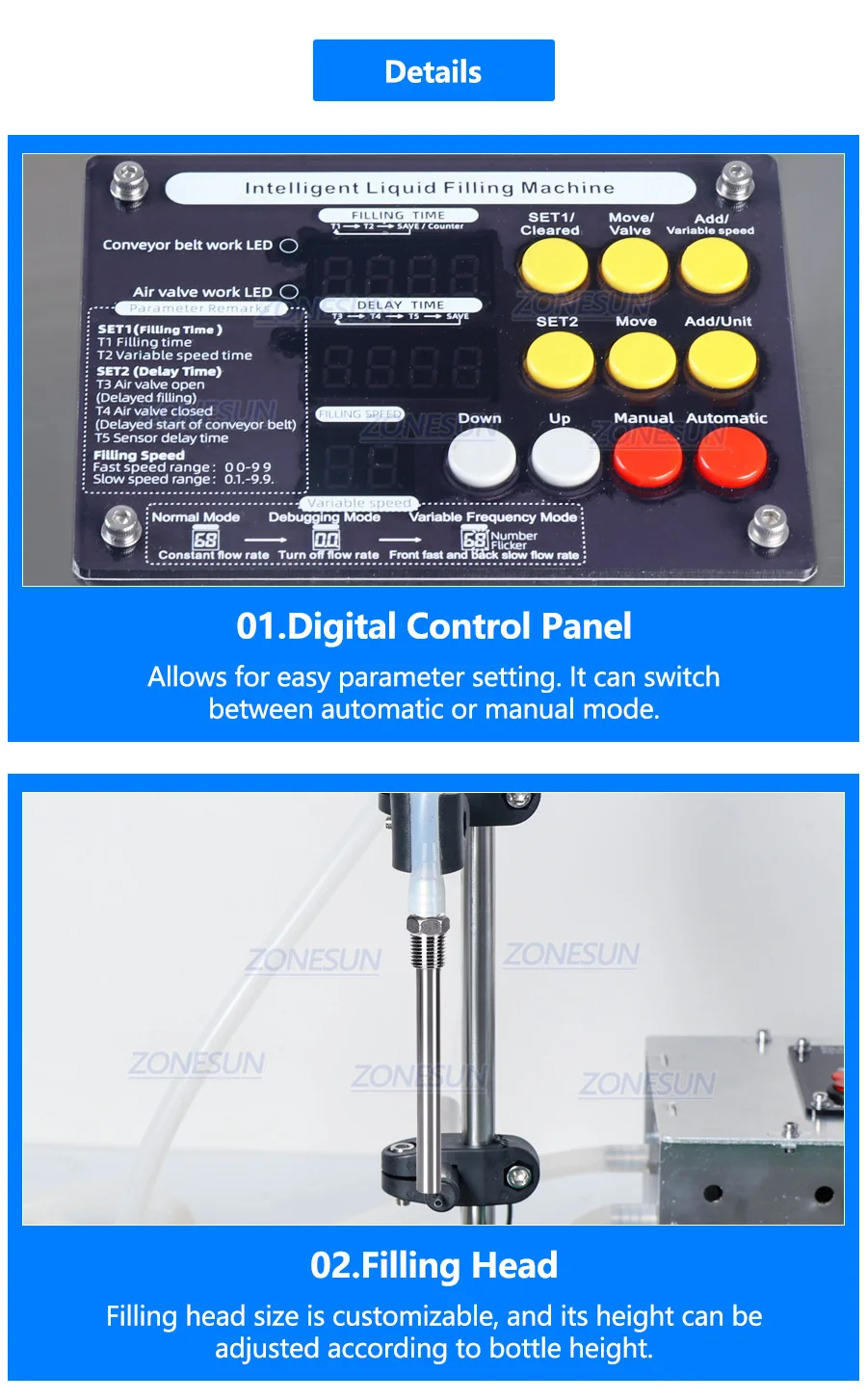

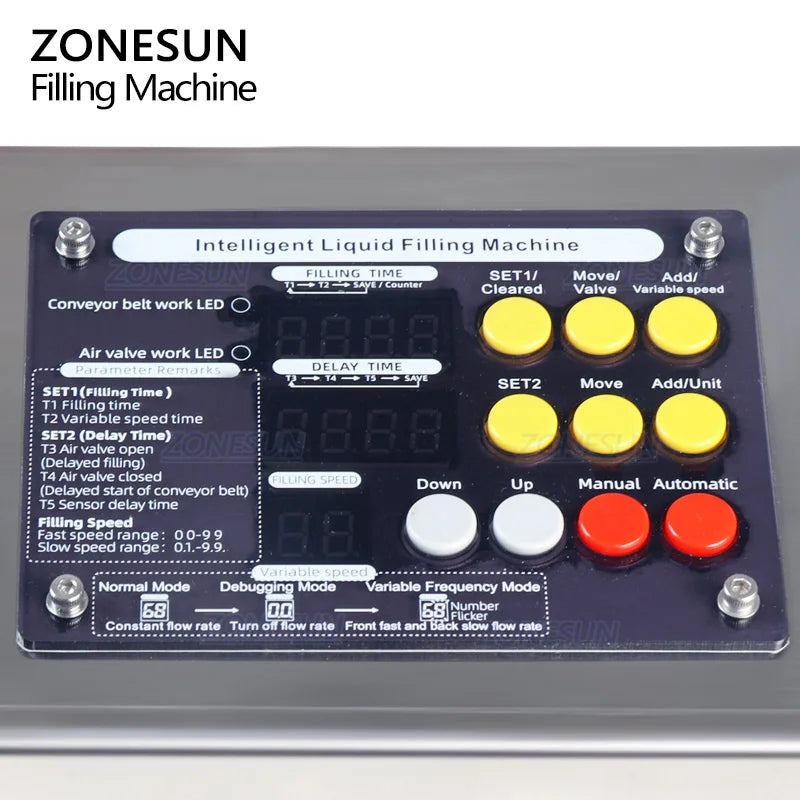

Working Mode	Manual/Automatic/Intelligent induction mode

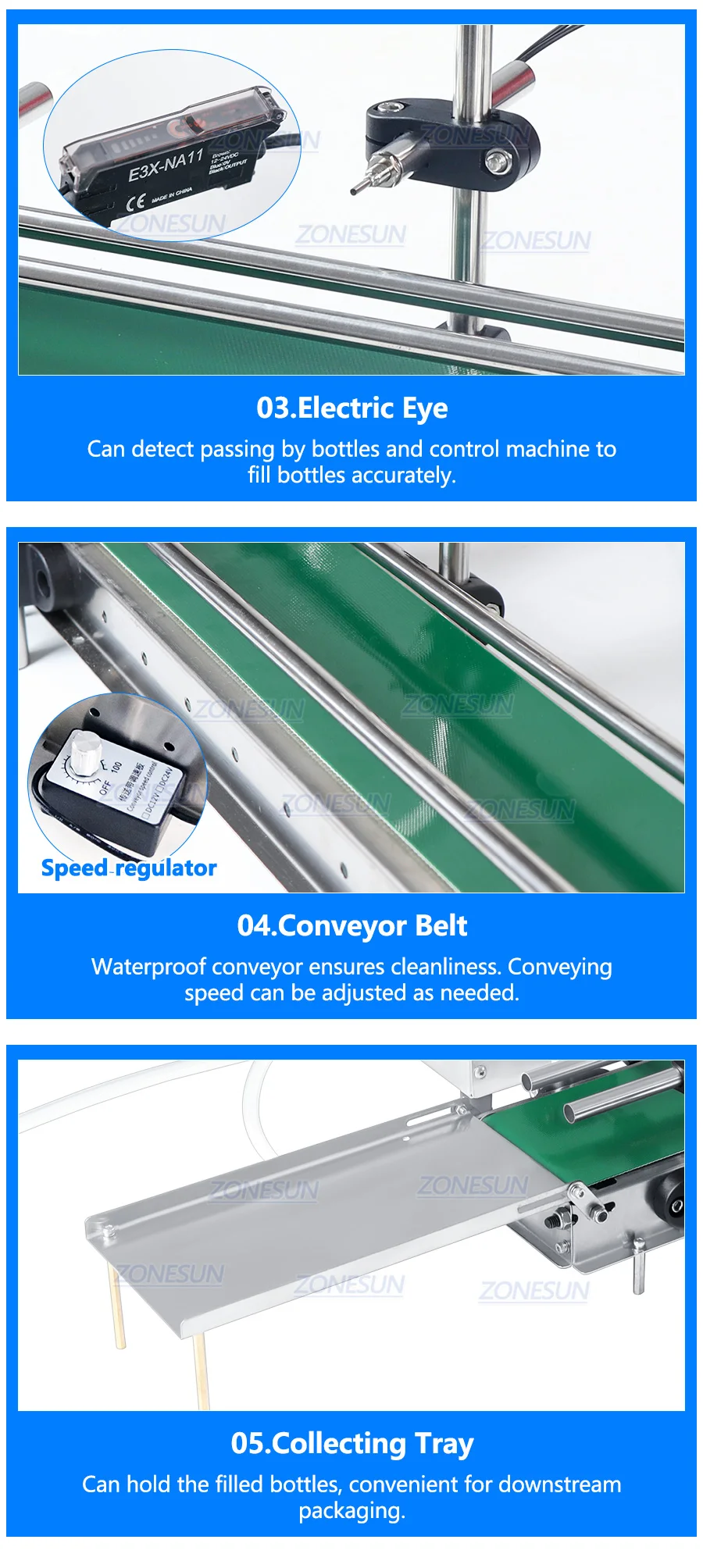

Distance of Intelligent induction	0-5mm
Machine Size	About 636*166*179mm
Package Size	About 680*170*200mm
Net weight	About 3.1kg
Gross weight	About 6kg
