SPECIFICATIONS

Advantage: Econmical Paper Process Machinery

Automatic Grade: Atuomatic

Key Selling Points: High Productivity

Keyword: Leaflets folding machine

Machinery Test Report: Provided

Marketing Type: Ordinary Product

Model: JT-ZE-9B/2

Place of Origin: China

Power Supply: 220v/1ph/50Hz

Voltage: AC 220V/50Hz 110V/60Hz

Working Width: 310mm

brand name: Jeta

computerized: Yes

core components: Motor,Other,Gear,Gearbox

dimension(l*w*h): 1020*425*525mm

key selling points: Energy Saving

machinery test report: Provided

place of origin: Shanghai, China

plc brand: Siemens

production capacity: 80m/min

type: Paper Folding Machine

video outgoing-inspection: Provided

voltage: 110v or 220v

warranty: 1 Year

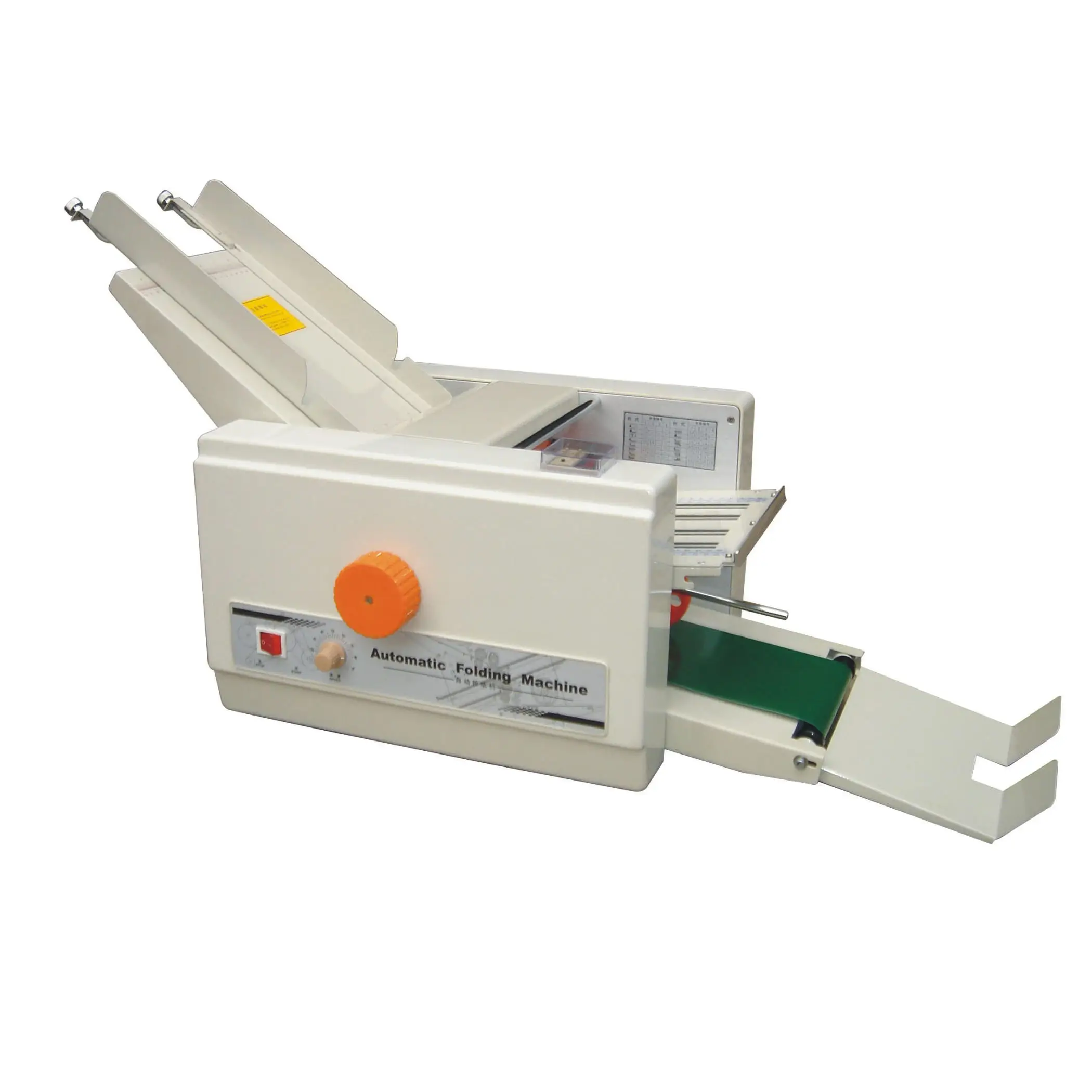

*[JT-ZE-9B/2] CE Standard Automatic ZE-9B/2 Automatic Multiple Folded Leaflet Booklet A4 Paper Folding Machine.
* It's widely usded for foldiing the product manual, business or official letter etc.
* It's suitable for folding paper in different size and thickness.
* This is a mini table type paper folding machine which featured with a novel design and reansonable structure.
* The paper feeding is achieved by big rubber roll, which has the advantage of stable performance, convenient operation, *also the speed is stepless adjustable which is high efficiency.

Model			ZE-8B/2	ZE-8B/4	ZE-9B/2	ZE-9B/4
Power supplier	V/HZ	AC 220/50 110/60
Power	W	50
Folding times		2	4	2	4
Max paper sheet	mm	310×700			210×420	210×620
Min paper sheet	mm	50×70
Paper weight	gsm	20-125
Max Speed	m/min	80
Weight	kg	35	48	30	43.5
Overall dimension	mm	1050×525×505	1080×530×580	1020×425×525	1020×430×580
