SPECIFICATIONS
Acceptable material thickness: ≤80mm
Collet type: ER11
Engraving speed: 300-2500mm/min
Max working stroke: 200x300x58mm
Maximum operating speed: 2500mm/min
No. of Spindles: Single
Power (kW): 1
Repeat positioning Accuracy: 0.03mm
Software Co patability: Mach3/Emc2/Kcam
Spindle Motor Power (kw): 1
Spindle motor: 300W DC spindle
Stepper motor and drive: 57BYGH-2.4A
Working Table Size(mm): 200x300
brand name: LY
cnc or not: CNC
core components: Bearing,Motor,Pump,Gear,PLC,Pressure Vessel,Engine,Gearbox
dimension(l*w*h): 600X800X500mm
key selling points: Easy To Operate
machine type: CNC Router
machinery test report: Provided
number of axes: -
place of origin: Guangdong, China
positioning accuracy (mm): 0.03
repeatability (x/y/z) (mm): 0.03
travel (x axis)(mm): 600
travel (y axis)(mm): 800
video outgoing-inspection: Provided
voltage: 110/220V
warranty: 1 Year
weight (kg): 24

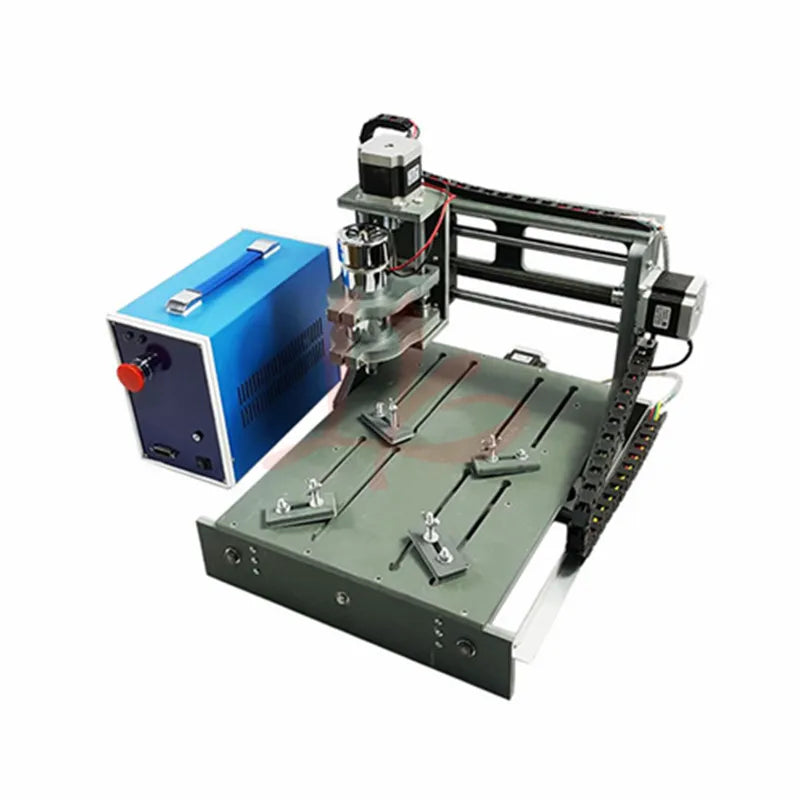

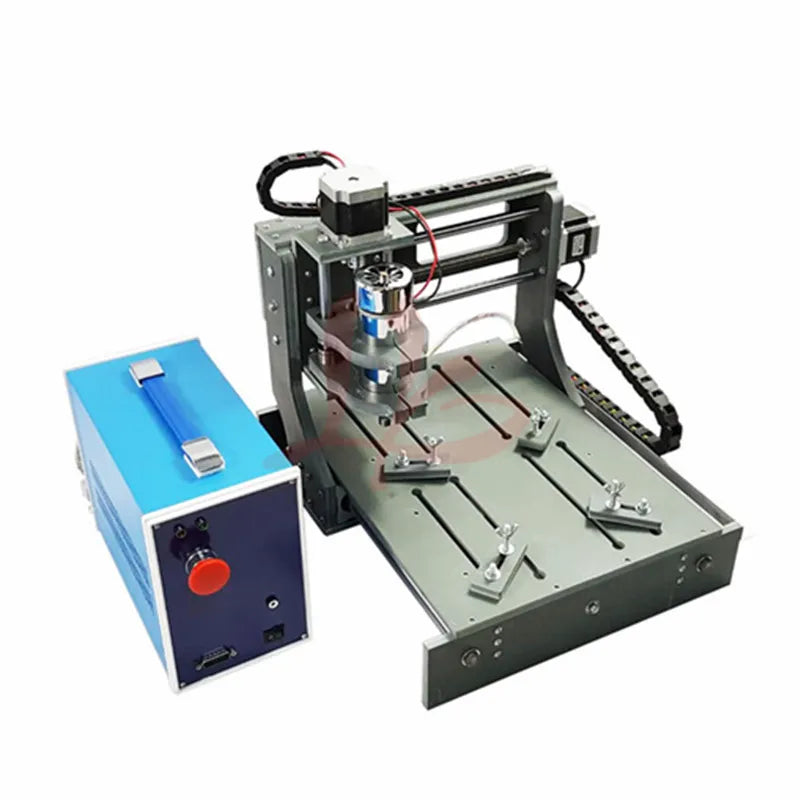

DIY Mini CNC Mach3 control lathe milling 300W spindle PCB machines cnc router machine for making diy toys idol Surrounding
Introduction
This is a very good era,in the past we only can see the CNC machine equipment in factory, but now, the CNC equipment has been into our lives;
Whether you are a small or medium enterprises managers, project engineers, CNC enthusiast or artists, related students, there are something on this machine will attract you;
It can help you processing a lot of parts, whether you are modeling or home decoration or creative DIY.
It can help you intuitively to learn CNC knowledge. And testing learning outcomes in real time.
Warranty
More Precise Stepping Motor
Simple operation and installation
1 year machine part and 6 months electrical parts,stepping motor,spindle Free Warranty
Model and Technical Parameters
|
MODEL |
CNC 2030 |
|||
|
Attribute |
3axis LPT |
3axis 2 in 1 |
4axis LPT |
4axis 2 in 1 |
|
Axis |
3axis |
3axis |
4axis |
4axis |
|
Interface |
LPT |
LPT+USB port |
LPT port |
LPT+USB port |
|
Spindle Motor: |
300W |
300W |
300W |
300W |
|
Weigh |
24 |
25 |
28 |
29 |
|
Max. working stroke |
XYZ=200*300*58mm |
|||
|
Acceptable material thickness |
≤80mm |
|||
|
Rail type |
X and Z axis to hard shaft diameter of 12 mm, Y axis is hard shaft diameter 16 mm; |
|||
|
Spindle motor |
300W DC spindle , 0-11000r/min |
|||
|
Collet type |
ER11,1/8"(3.175mm) Collet |
|||
|
Stepper motor and drive |
57BYGH-2.4A, |
|||
|
Maximum operating speed |
2500mm/min (Engraving speed : 300-2500mm/min) |
|||
|
Repeat positioning Accuracy |
0.03mm |
|||
|

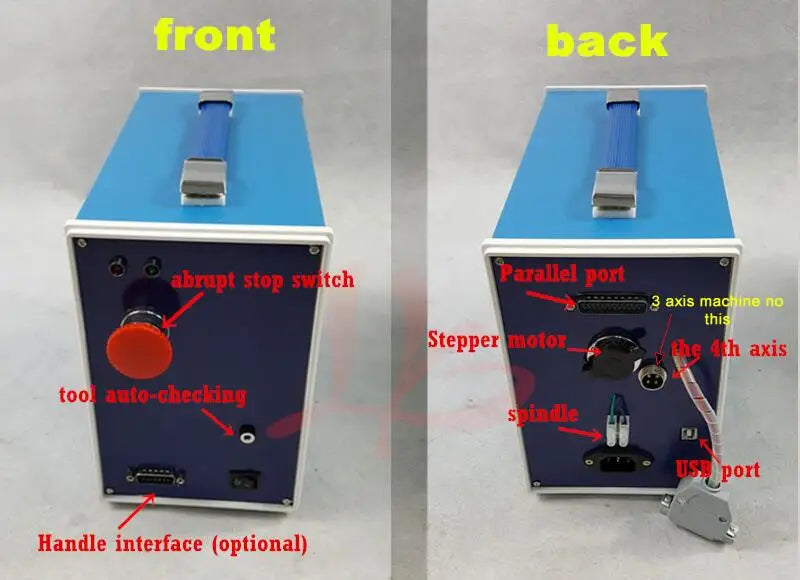

Communication interface |
Only LPT or 2 in 1-Parallel port and USB port ( CNCUSBController ) |
|||
|
Software Co patability |
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam) |
|||
|
Command code |
G code/.nc/.ncc/.tab/.txt |
|||
|
Machine weight |
26kg |
|||
|

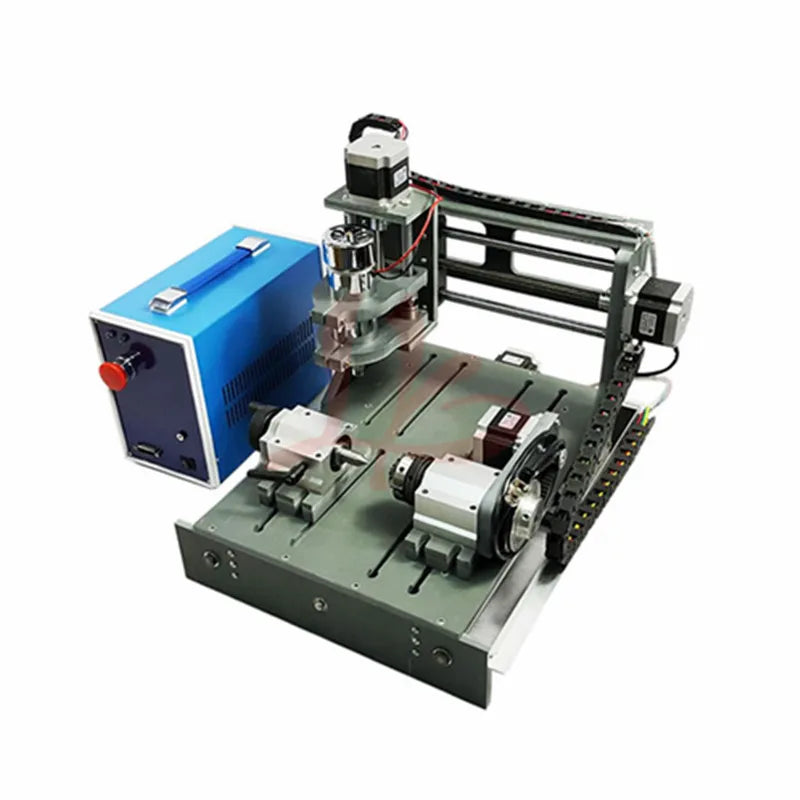

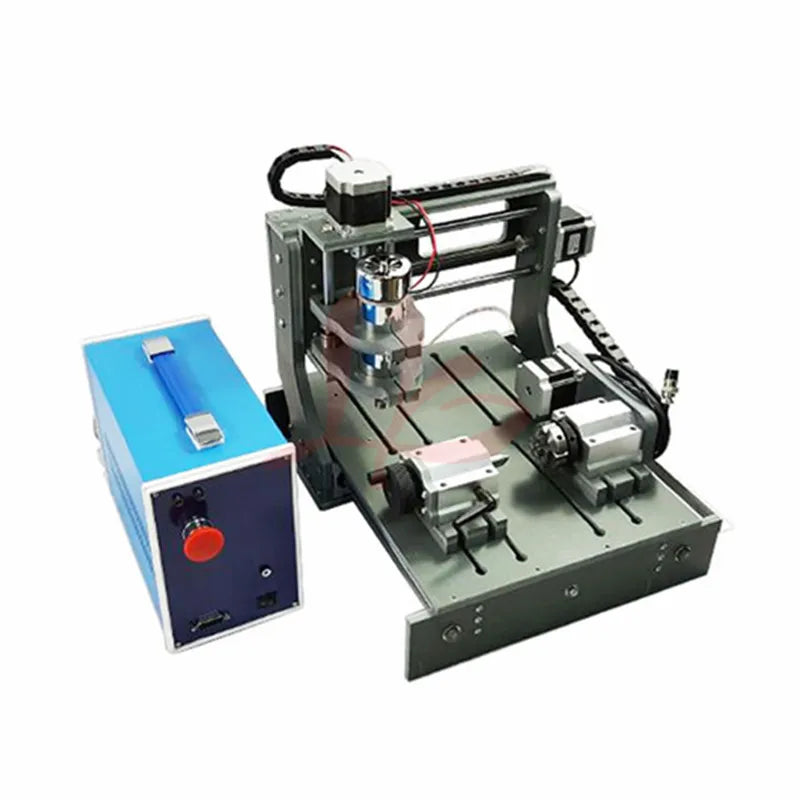

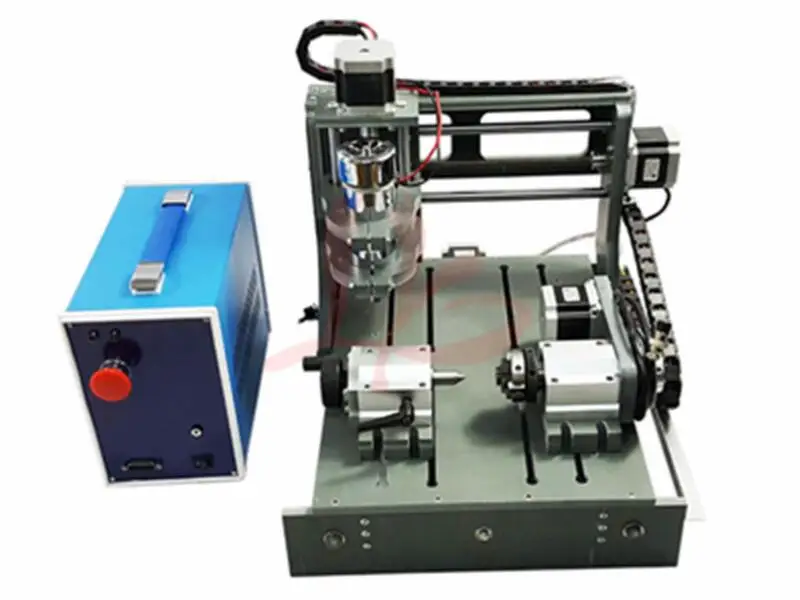

With Rotation Axis (4th Axis) Description
|
Center height: H=50mm Reduction ratio 4:1 Stepping motor: 57-2.4A Weight: 4kg |
|||
