SPECIFICATIONS

Brand Name: Datang

Color: Red and Black

Control system: Xinjie PLC

Core Components: Motor,Engine,PLC

Cutting thickness (max): 50mm

Dimension(L*W*H): 9300*3100*2400

Inverter: Schneider

Key Selling Points: Long Service Life

Machinery Test Report: Provided

Main Power: 7.5kw/11kw

Max Polishing Width: 1260mm

No. of polishing head: 12/16/20/24

Place of Origin: Shandong, China

Polishing materials: Granite ,Marble,Quartz , Terrazzo

Power(W): 7.5/11kw

Swing velocity of cross spreader: 0-48m/min

Type: Stone Polishing Machine

Use: Granite

Velocity of conveyor belt: 0-3.5m/mim

Video outgoing-inspection: Provided

Voltage: 220-460V

Warranty: 1 Year

Water Consumption: 15-20M3/h

Weight: 16000 kg

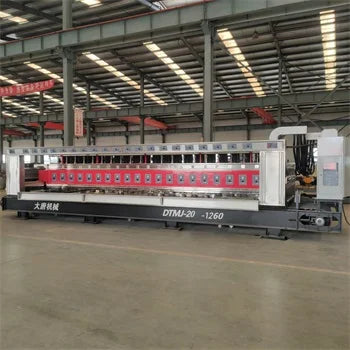

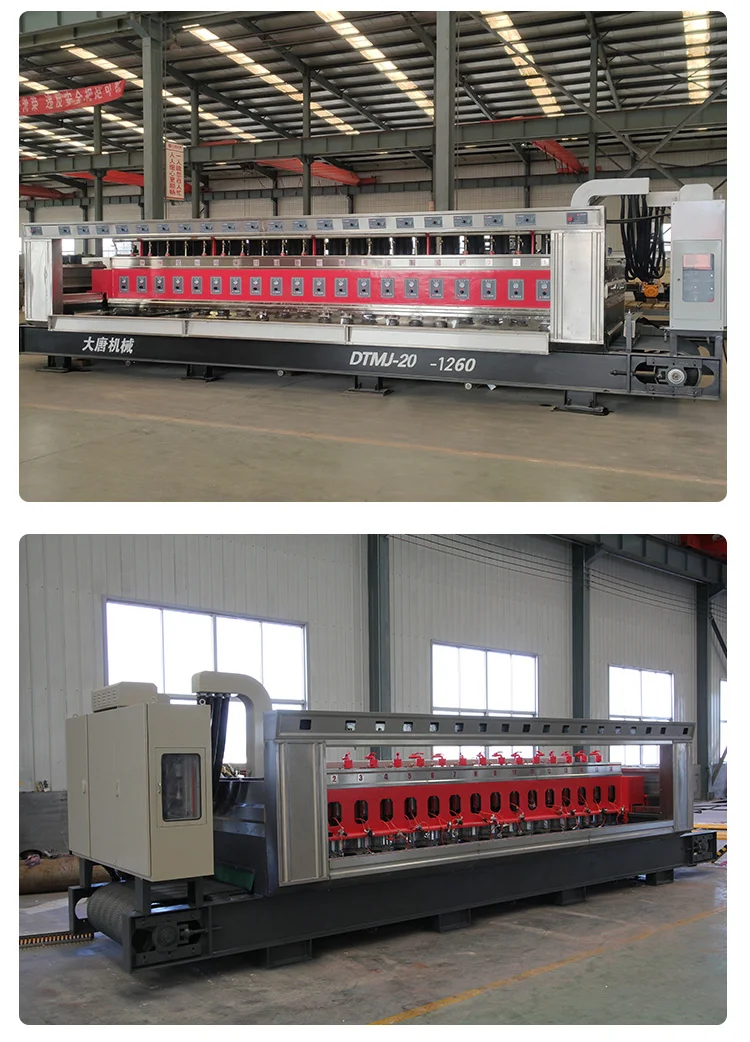

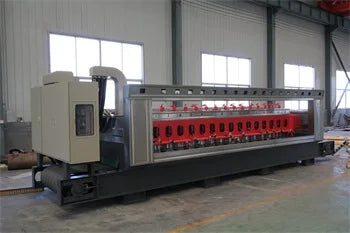

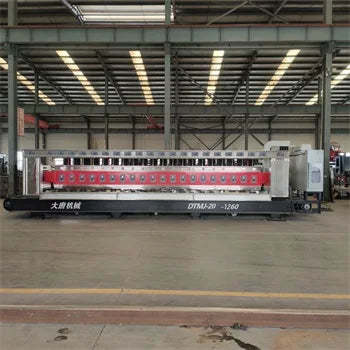

DTMJ-16/20/24-1000/1260multi-heads automatic continuous polishing machine

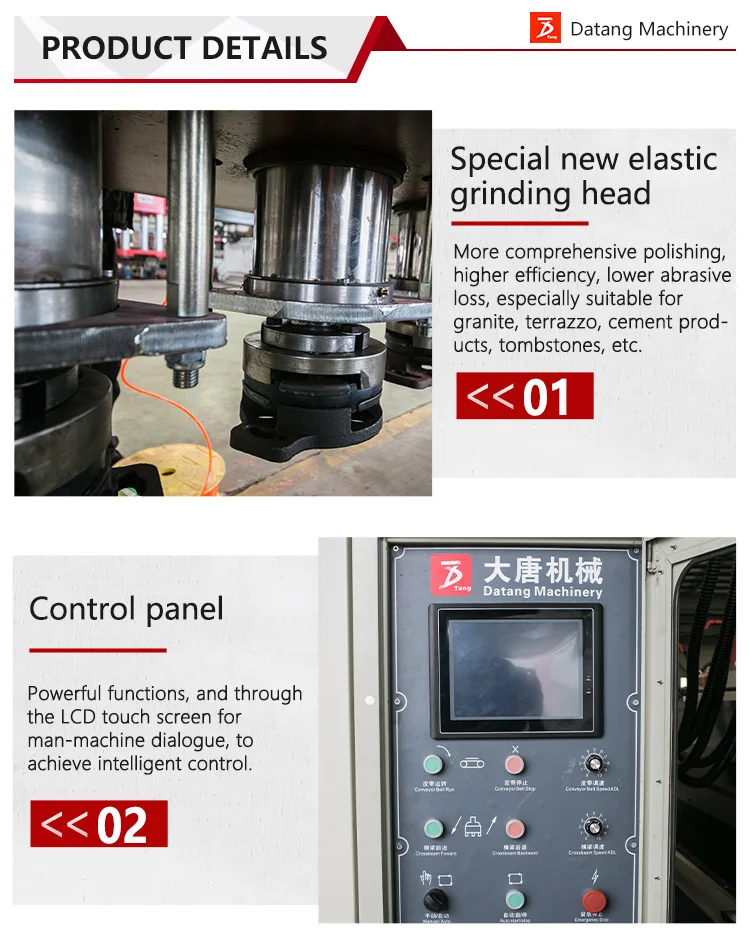

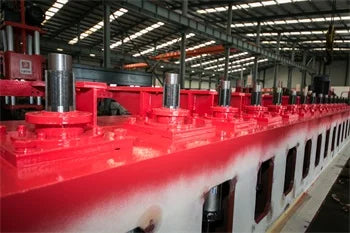

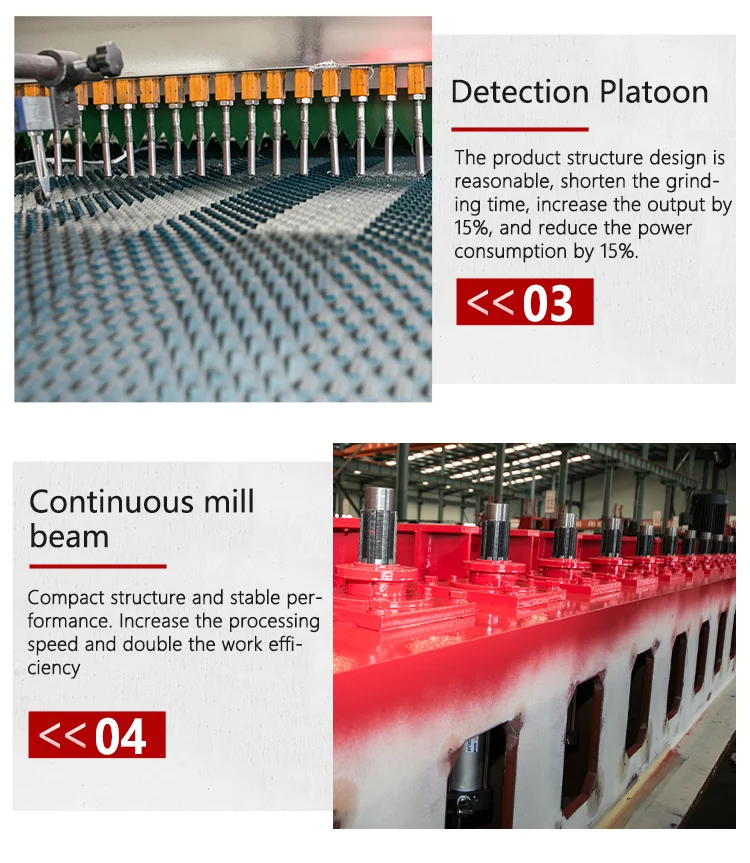

The DTMJ-16/20/24-1000/1260multi-heads automatic continuous polishing machine adopts high quality steel, where the peneumatic parts adopt YADEKE products from Taiwan to reserve a compact structure and steady performance so as to improve the processing efficicency. With new elastic grinding head made of special resin for grinding, the machine is special for polishing granite plate, for it ensure a more comprehensive polishing and higher efficiency as well as reduce grinding materials consumption. The PLC programmable system has many functions. The intelligent control is available for operator with LCD touch screen to interact with machine. The product is reasonably structured to decrease the grinding time, to improve productivity by 15% and to decrease electricity waste by 15%. The velocity of conveyor belt, swing velocity of cross spreader, lifting air cylinder pressure are adjusted by customer according to their plate material quality and customer demand. In addition, the accessories of DTMJ-16/20/24-1000/1260Multi-heads automatic continuous grinding machine can be chosen by costomers demands.

Model	Unit	DTMJ-16-1000	DTMJ-16-1260	DTMJ-20-1260	DTMJ-24-1260
Number of polishing head	pcs	16	16	20	24
Velocity of vonveyor belt	m/min	0-3.5	0-3.5	0-3.5	0-3.5
Swing velocity of cros spreader	m/min	0-48	0-48	0-48	0-48
Thickness of processing	mm	10-50	10-50	10-50	10-50
Water consumption	m3/h	15-20	15-20	15-20	15-20
Max.Width of polishing plate	mm	1000	1260	1260	1260
Main motor power	kw	7.5/11	7.5/11	7.5/11	7.5/11
Total power	kw	134	134	167	202

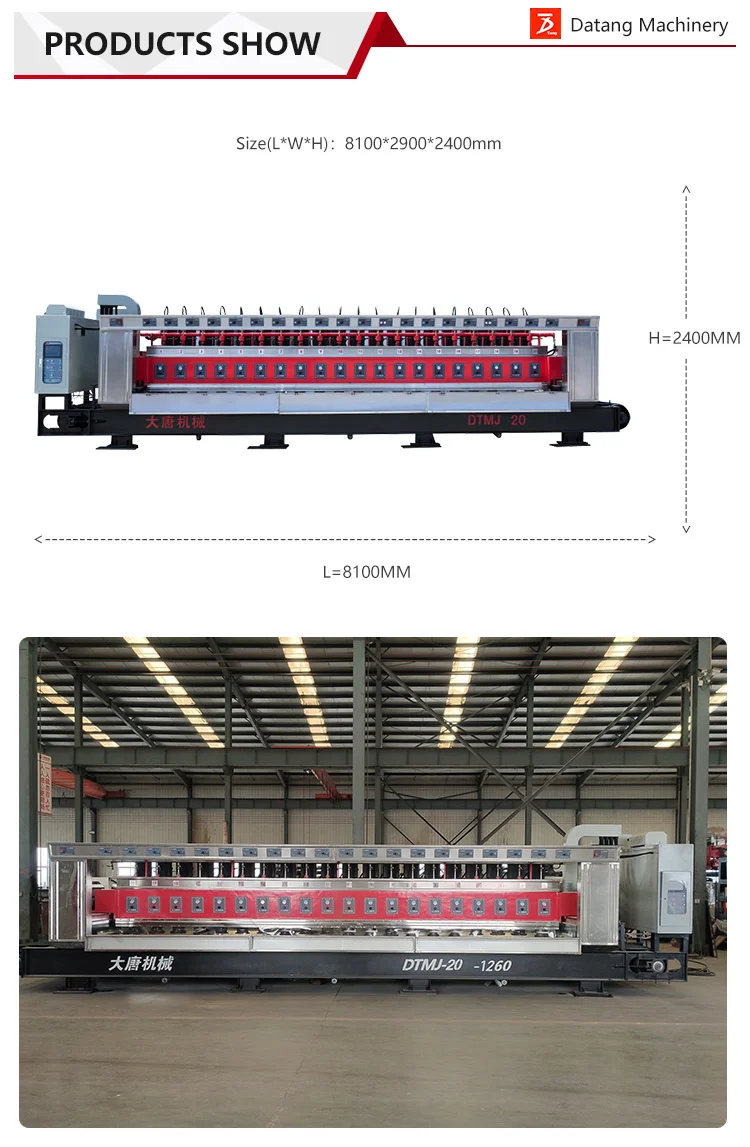

Overall diamension (L*W*H)	mm	8100*2900*2400	8100*3100*2400	9300*3100*2400	11000*3100*2400

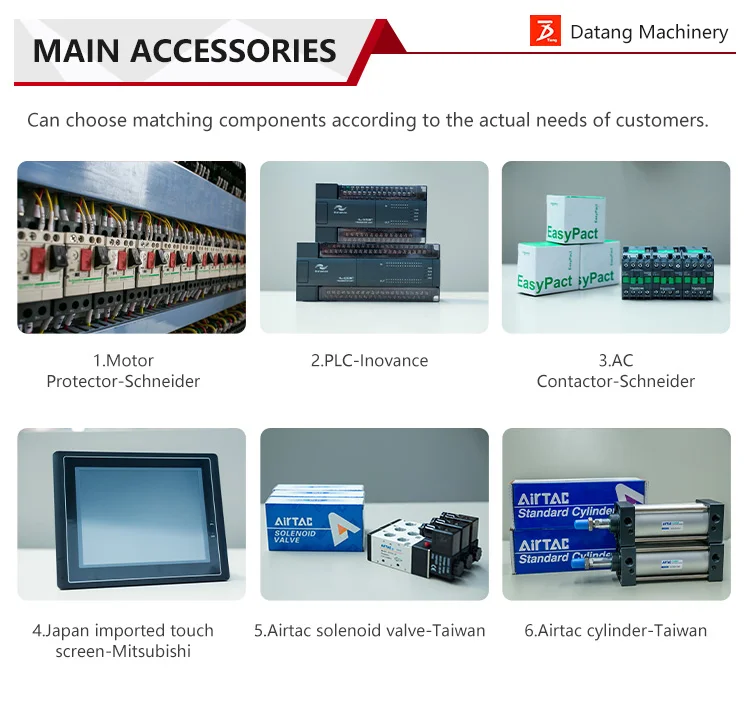

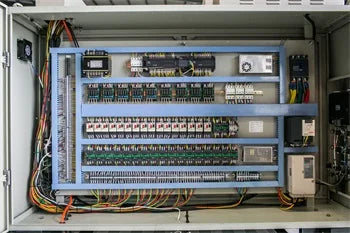

Main ccessories

motor protector-Schneider ,

PLC- inovance

AC Contactor-Schneider

Japan imported touch screen-Mitsubishi

Airtac solenoid valve-Taiwan

Airtc cylinder-Taiwan

Shandong Datang Machinery Technology Co.,Ltd is situated at Laizhou city ,Shandong Province,where is
one of the most important base of professional exporting the machinery.
The registered capital of the company is 50 million. There are 268 workers in our company and cover an area of 61800 square meter. There are many kinds of stone machines in our company,such as multi blade block cutter ,automatic continuous polishing machine,bridge type infrared slab cutter and so on .We are the largest manufacturer in northern China.We have a professional team for foreign trade.We sell in China,also export to Southeast Asia, East Asia,India ,Africa,South America,Oceania,Central Asia,Russia,Pakistan and other countries.

1,Raw material 2,Raw material testing 3,Blanking 4,Machining

5,Drilling 6,Manual polishing 7,Welding 8,Assembly

9,Debugging 10,Quality Inspection 1 11, Quality Inspection 2 13,Off shelf storage

1.The machines' transportation can be by sea or by train 2.0ur machines are usually very big ,so they are nude packing.But we will wrap the key parts with packing film. 3.During transportation, we will use steel wire ropes and wood to fix them. 4.Delivery time:Some machines we have it in stock ,we can ship as soon as we receive your payment.lf need produce,it usually takes 10-25 days.

Q:Are you a manufacturer or a trading company? A.We are a leading stone machne manufacturer in north China.

Q:Can I become a distributor? A.Yes,we have special discounts for distributors. Q:What is your competitiveness? A We are the largest stone machine manufacturer in north China.We can provide one-stop putchasing service.Our machine has good price wth best quality.Each machine has long service life,high production capacity and accuracy .Also,we could send engineer to help customer if machine got problems Q:When will you ship my order? A.For regular machines.we have standard models im stock so we can ship it as soon as we rereive your payment.lf we do hot have it in stock,narmally it takes 15-20 days to procluce after receiving deposit.it can benegotiated if customer need machines urgently. Q:How about the warranty period? A I year Q:What language does your machine have? A.A machines have both Chinese and English language,We can alto add Russian,Saudi,Polish,Korean,etc according to your regulrement. Q:How can you quarantee the production quality? A.We have strictly quality control system in our producton process.All products must be double checked during every manufacturing process.Requirement of customers and quality of products will be full guaranteed.We will send you machine testing videos before shipping Q:After l bought the machines,how I can install and operate it? A We can send engineer to help you with machine installation and training,or we can send you foundation diagram and instuction videos. Q:If l don't want your engineer,how can I install and operate the machine by myself? A.We can send you machine foundation diagram and insrucion videos for installation,We have machine manual to teach you how to operate.
