SPECIFICATIONS

Brand Name: NONE

CNC or Not: CNC

Certification: CE

Chuck: 4 position electronical toolpost

Control System: AFTER,GSK,SIMENS

DIY Supplies: Electrical

Function: Machining Metal

High-concerned chemical: None

Machine Type: China Mini CNC Lathe

Max. Swing Diameter (mm): 210 mm

Name: Metal Cnc Lathe

Origin: Mainland China

Power (kW): 1.2

Precision: High Precision

cnc control system: AFTER 990TDB

cutting torque: 2

dimension(l*w*h): 1170x700x860

key selling points: Competitive Price

machinery test report: Provided

machining capacity: Medium Duty

max. length of workpiece (mm): 400 mm

max. weight of workpiece(kg): 50

model number: CNC210

no. of spindles: Single Phase

number of axes: 2

place of origin: Anhui, China

positioning accuracy (mm): 0.01 mm

range of spindle speed(r.p.m): 1 - 3000

repeatability (x/y/z) (mm): 0.001

structure: Flat Bed Lathe

tool post stations: 4

travel (x axis)(mm): 105

travel (z axis)(mm): 270

type: Horizontal

video outgoing-inspection: Provided

voltage: 220V

warranty: 1 Year

weight (kg): 230

width of bed (mm): 100 mm

Dear friends, welcome to our store. If you need this product or other models, please contact me on,I will send you the product link for you to purchase!

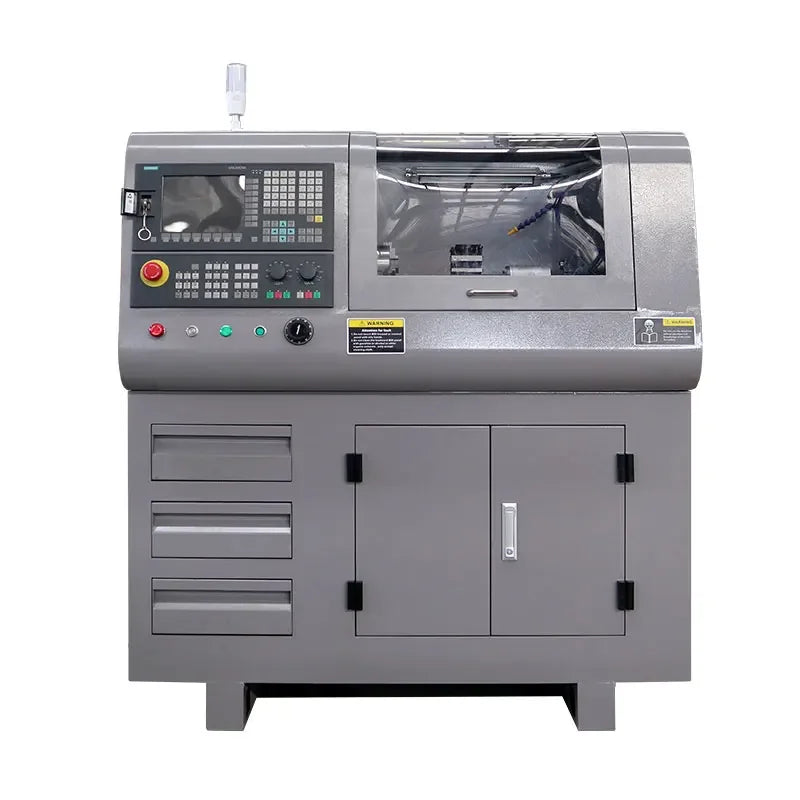

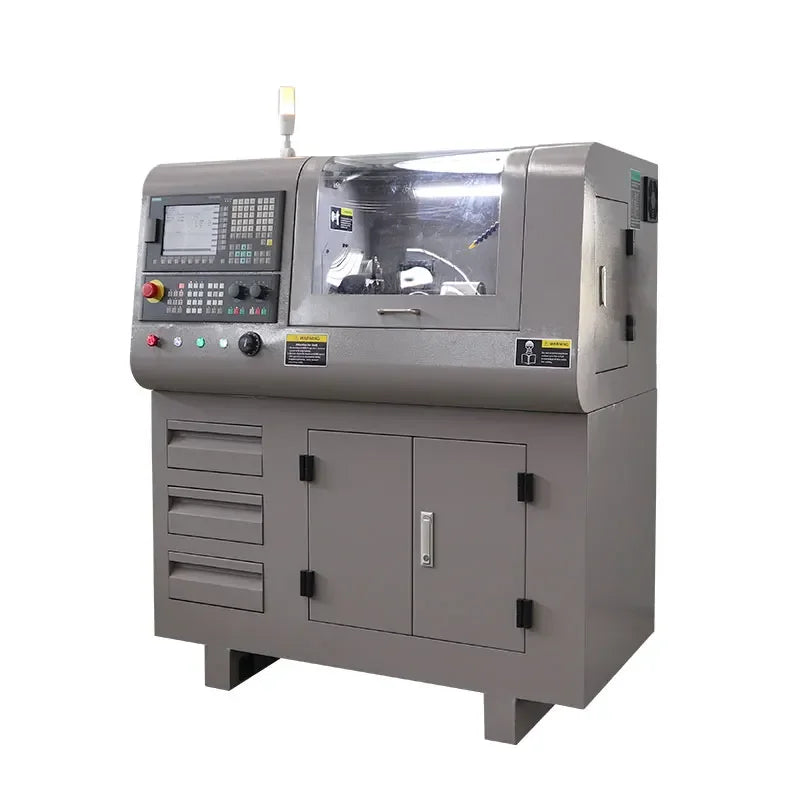

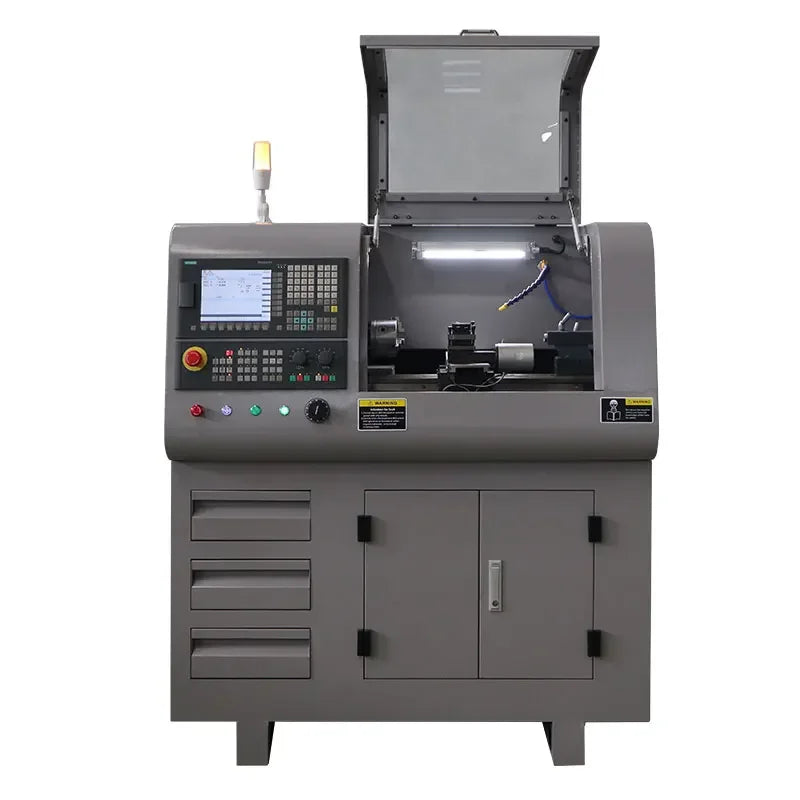

CNC210 Mini CNC Lathe Machine Features:

1.Main motor:Servo motor
2.Small size and cheap price
3.Lower noise and high precision
4.Suitable for educational training and mould machining

Specification	CNC210
Capacity
Max. swing over bed	210mm
Distance between centers	400mm
Rail width	100mm
Spindle
Spindle bore dia.	26mm
Spindle taper	MT4/5C(Optional)
Spindle speed	3000rpm
No. of tool stations	4-position
Axis
X-axis travel	105mm
Z-axis travel	270mm
X rapid speed	3000mm/min
Z rapid speed	3000mm/min
Motor

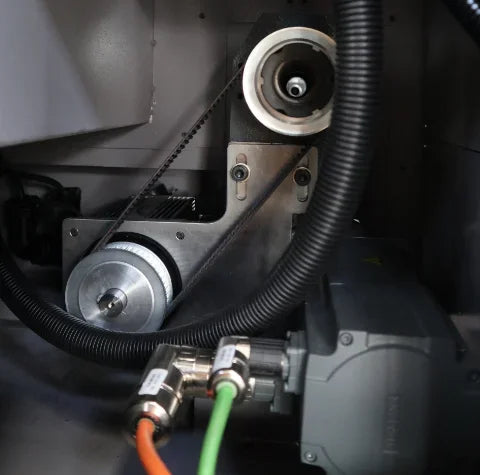

Spindle motor power	1.2kw
Main motor type	Srevo motor
Controller system	After 990TDB
X motor torque	2.4N.m
Z motor torque	2.4N.m
Min. setting unit	0.001mm
Turret
Type	Electric type
No. of tool stations	4 position
Max. section of tool	12x12mm

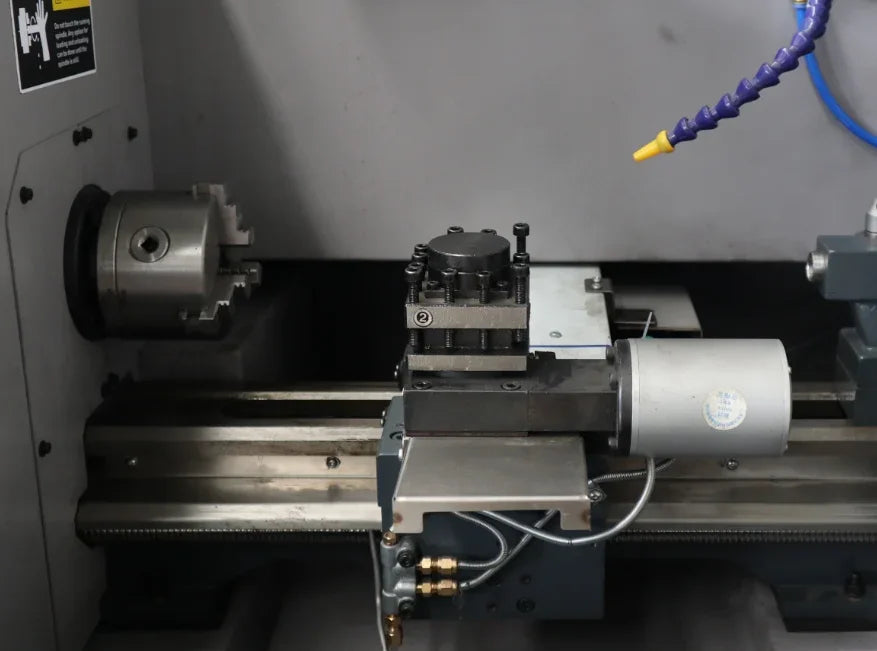

Tailstock
Tailstock dia.	22mm
Tailstock tavel	50mm
Tailstock taper	MT2
Machine Dimensions
Packing size(without stand)	1170X700X860mm
Overall size	1300X800X1500mm
N.W(without stand)	200kg
N.W	230kg
